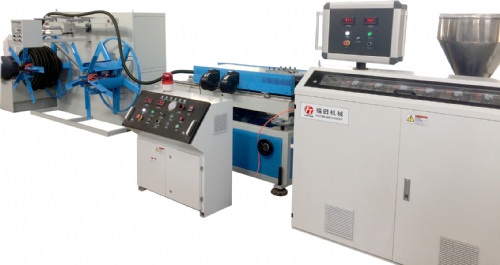

Single wall corrugated pipe machine
Exhibitor: ZHANGJIAGANG CITY FUTIAN MACHINERY CO.,LTD
Category: PLASTIC MACHINERY
Booth No.: F5
production line shall be used to produce small diameter single wall corrugated pipe in PE/PP and PVC raw material. Molding corrugated
with smooth inside and outside surface, and even ripple at one time by corresponding die. Used as electic wire pipe, washing machine
pipe, dust collector pipe and ventiduct, etc.
Small size corrugated pipe of Φ4-Φ7mm are used in car.
1. High cost performance and long life.
2. High stability and precision performance.
3. High automatic degree.
4. High production efficiency.
5. Good after-sales service.
Main technical parameter:
Model Die Block(couple) Pipe range (mm) Speed(m/min) Output(kg/h)
FTBW-25 42 8-25 4-12 8
FTBW-32 442 16-32 2-10 30
FTWB-63 42 20-63 2-8 60
